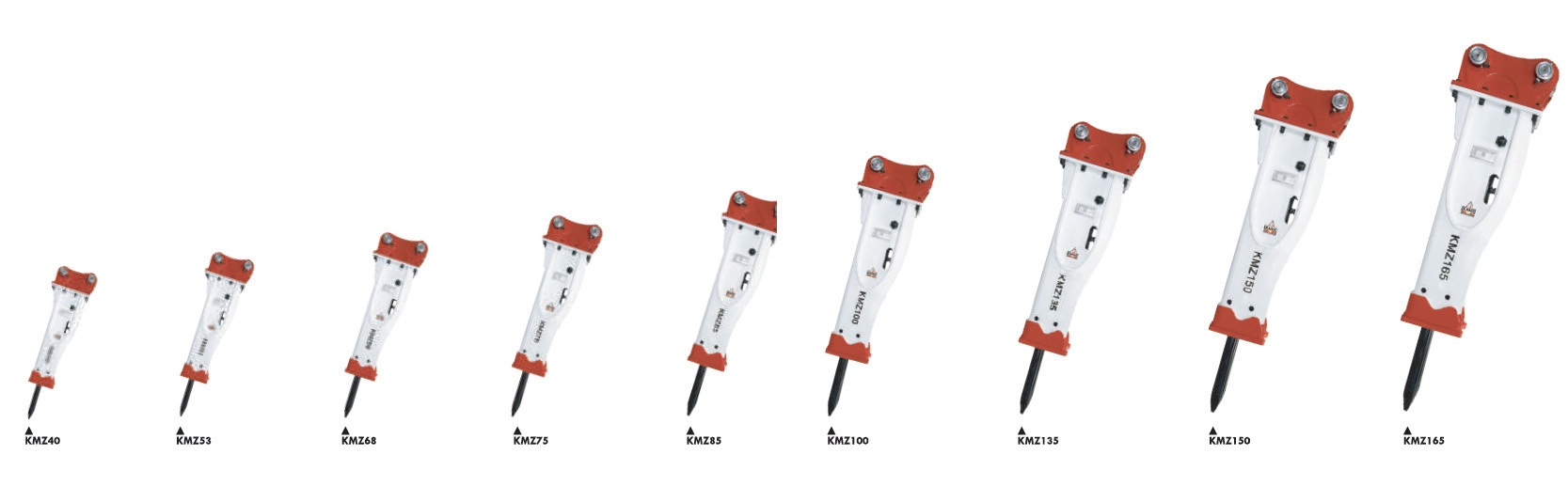

Box Type Hydraulic Breakers

Description
Kamaz Box Type hydraulic breakers are meticulously engineered to deliveroptimal performance across a wide range of applications, ensuring maxi-mum productivity in construction, demolition, quarrying, and mining oper-ations.
ENHANCED DURABILITY
Robust box-type housing enhances structural integrity, ensuring longevityin challenging environments.
IMPROVED NOISE REDUCTION
With our advanced noise reduction technologies, they are more suitablefor use in noise-sensitive environments.
BETTER HEAT DISSIPATION
lmproved heat dissipation prevents overheating of internal components.resulting in better reliability and longevity compared to other types ofbreakers.
OPTIMIZED WEIGHT DISTRIBUTION
Easier to control and maneuver, resulting in more precise breaking andreduced operator fatigue.
Specifications Unit |
KMZB 40 |
KMZB 45 |
KMZB 53 |
KMZB 68 |
KMZB 75 |
KMZB 85 |
KMZB 100 |
KMZB 125 |
KMZB 135 |
KMZB 140 |
KMZB 150 |
KMZB 155 |
KMZB 165 |
KMZB 175 |
KMZB 190 |
KMZB 195 |
KMZB 200 |
KMZB 205 |
KMZB 210 |
KMZB 230 |
KMZB 255 |
||
Required Oil Flow | 1/min | 15-30 | 20-40 | 20-50 | 40-70 | 50-90 | 60-100 | 80-110 | 90-120 | 100-150 | 120-180 | 130-190 | 180-240 | 200-260 | 220-270 | 240-280 | 260-300 | 280-350 | 320-410 | 350-450 | 420-530 | 430-580 | |
gal/min | 4.0-7.9 | 5.3-10.6 | 5.3-13.2 | 10.6-18.5 | 13.2-23.8 | 15.9-26.4 | 21.1-29.1 | 23.8-31.7 | 26.4-39.6 | 31.7-47.6 | 34.3-50.2 | 47.6-63.1 | 52.8-68.4 | 58.1-71.1 | 63.4-74.7 | 68.7-80.0 | 75.0-92.5 | 84.5-108.3 | 92.5-118.8 | 111.1-140.1 | 113.7-153.1 | ||
Pressure Relief | bar | 130 | 140 | 150 | 160 | 180 | 180 | 210 | 210 | 210 | 210 | 230 | 250 | 250 | 270 | 290 | 290 | 300 | 310 | 310 | 310 | 310 | |
psi | 1885 | 2031 | 2176 | 2321 | 2611 | 2611 | 3046 | 3046 | 3046 | 3046 | 3336 | 3626 | 3626 | 3916 | 4206 | 4206 | 4351 | 4496 | 4496 | 4496 | 4496 | ||
Working Pressure | bar | 90-120 | 90-120 | 90-120 | 110-140 | 120-150 | 130-160 | 150-170 | 150-170 | 160-180 | 160-180 | 180-200 | 200-220 | 200-220 | 200-230 | 230-250 | 230-250 | 240-260 | 250-270 | 250-270 | 250-270 | 250-270 | |
psi | 1305-1740 | 1305-1740 | 1305-1740 | 1595-2035 | 1741-2176 | 1887-2321 | 2176-2466 | 2176-2466 | 2322-2611 | 2322-2611 | 2611-2900 | 2901-3190 | 2901-3190 | 2901-3335 | 3336-3624 | 3336-3624 | 3481-3769 | 3625-3914 | 3625-3914 | 3625-3914 | 3625-3914 | ||
Impact Rate | bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 400-800 | 400-800 | 350-700 | 350-650 | 350-500 | 350-500 | 200-300 | 200-300 | 150-300 | 130-200 | 100-140 | 100-140 | 100-130 | 100-130 | 90-120 | 70-100 | 70-100 | |
Hose Diameter | inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 1 | 1 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | |
Chisel Diameter | mm | 40 | 45 | 53 | 68 | 75 | 85 | 100 | 125 | 135 | 140 | 150 | 155 | 165 | 175 | 190 | 195 | 200 | 205 | 210 | 230 | 255 | |
inch | 1.6 | 1.8 | 2.1 | 2.7 | 3.0 | 3.3 | 3.9 | 4.9 | 5.3 | 5.5 | 5.9 | 6.1 | 6.5 | 6.9 | 7.5 | 7.7 | 7.9 | 8.1 | 8.3 | 9.1 | 10.0 | ||
Chisel Length | mm | 450 | 500 | 540 | 680 | 750 | 850 | 1000 | 1100 | 1300 | 1300 | 1500 | 1500 | 1600 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 2050 | 2200 | |
inch | 17.7 | 19.7 | 21.3 | 26.8 | 29.5 | 33.5 | 39.4 | 43.3 | 51.2 | 51.2 | 59.1 | 59.1 | 63.0 | 66.9 | 66.9 | 66.9 | 66.9 | 66.9 | 66.9 | 80.7 | 86.6 | ||
Carrier Weight | t | 0.5-1.2 | 0.8-1.5 | 1.5-3.5 | 4.5-6 | 6-8.5 | 7-11 | 10-14 | 14-18 | 18-22 | 20-24 | 24-27 | 27-33 | 33-38 | 40-50 | 45-55 | 50-60 | 50-65 | 55-65 | 65-100 | 85-120 | 100-160 | |
lbs | 1102-2645 | 1763-3306 | 3306-7716 | 9920-13227 | 13227-18783 | 15432-24251 | 22046-30864 | 30864-39783 | 39783-48701 | 44092-52910 | 52910-59685 | 59685-72724 | 72724-83775 | 88184-110230 | 99207-121676 | 110230-132276 | 110230-143099 | 121676-143099 | 143099-220462 | 187830-264553 | 220462-352739 |
